#878 new enhancement

reduce unneeded vertical tree spacing

Reported by: westram Owned by: devel
Priority: normal Milestone:
Component: ARB_NTREE Version: SVN
Keywords: tree display condense Cc:

Description

When changing font sizes for different color/font definitions (GCs), arb automatically resizes the vertical distances in the dendrogram tree view.

If using different sizes e.g. for marked and unmarked species and/or groups (as shown in the attached picture), a more condensed view would be possible, if the vertical distance between species shown in smaller fonts, could be reduced.

Currently arb detects the biggest potential font and uses its size for all distances.


related: #706

Attachments (1)

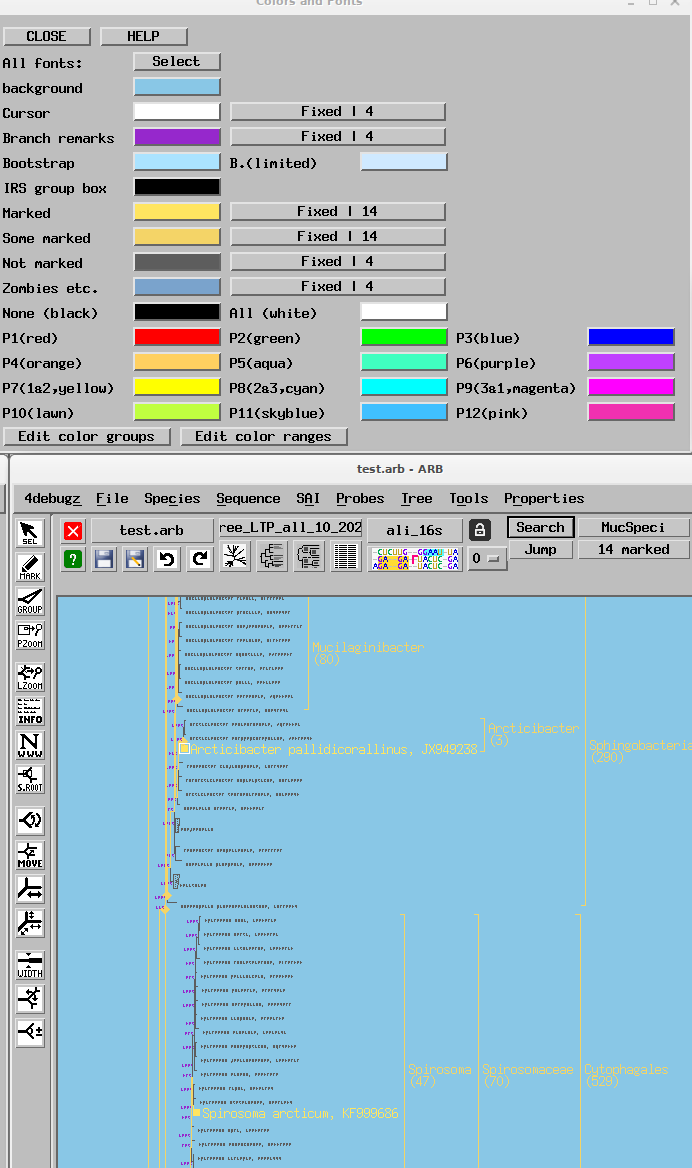

arb screenshot showing unwanted vertical spacing

Download all attachments as: .zip

Change History (2)

Changed 73 minutes ago by westram

arb screenshot showing unwanted vertical spacing

comment:1 Changed 68 minutes ago by westram

Different font sizes configured and current effect on tree display: arb screenshot showing unwanted vertical spacing
